How to Choose the Right Elevator Door Hanging Wheel for Your Lift
Elevator doors are one of the most frequently used components in a lift system. Every time passengers enter or leave a building, the doors open and close, putting continuous pressure on the rollers, tracks, guides, and other door hardware. Among these components, the Elevator Door Hanging Wheel plays an important role in helping the door panels move smoothly and maintain proper alignment.
Choosing the correct wheel is not simply a matter of selecting a wheel that looks similar to the existing one. The right product must match the door mechanism, dimensions, load requirements, track design, and operating conditions of the elevator. An incorrectly selected wheel can cause vibration, noise, uneven movement, premature wear, and repeated maintenance.
For building owners, elevator technicians, maintenance companies, and buyers sourcing replacement parts, understanding these factors can make the selection process much easier.

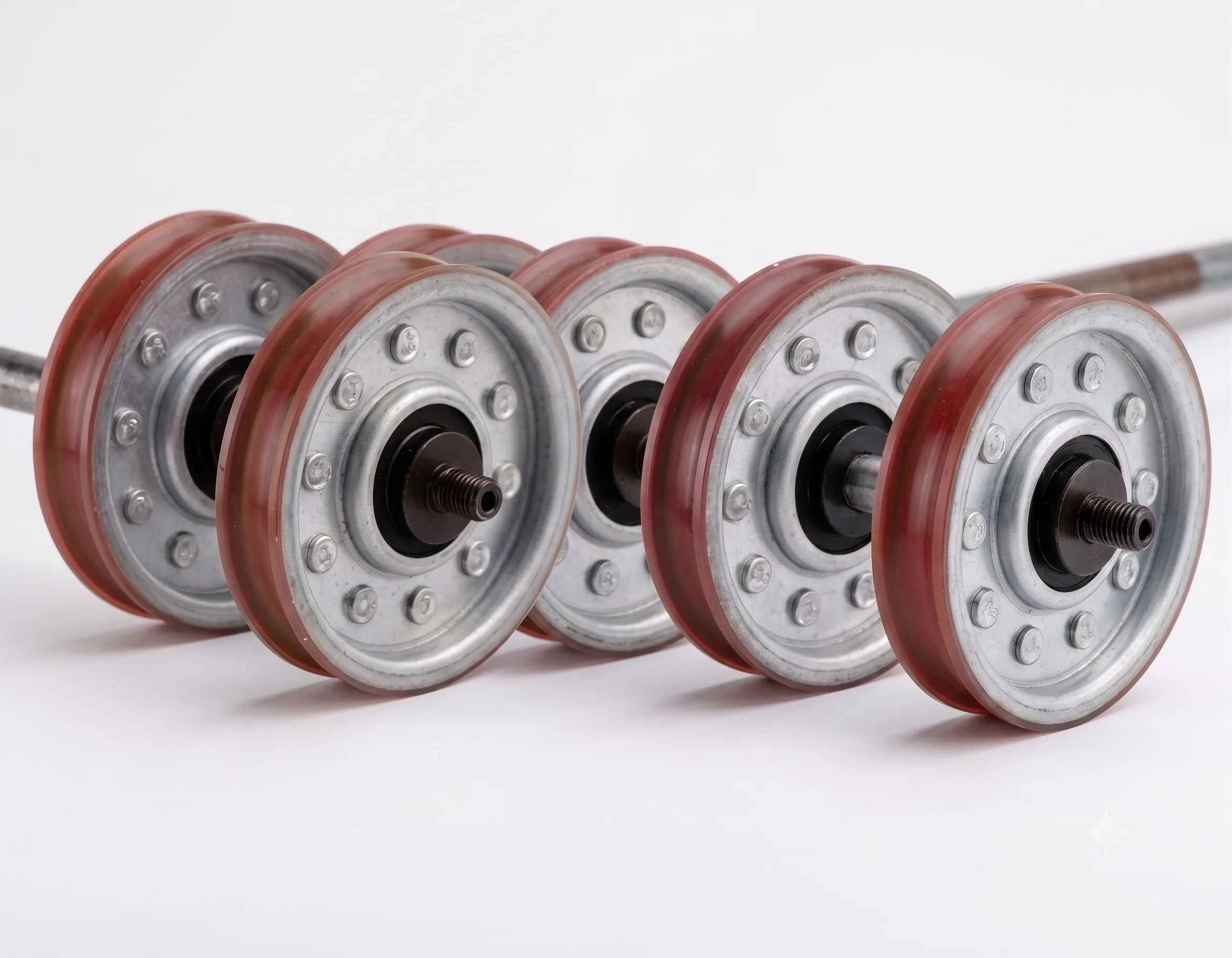

What Is an Elevator Door Hanging Wheel?
An elevator door hanging wheel is a rolling component installed as part of the elevator door hanger assembly. It supports and guides the door panel while allowing it to travel along the designated track during opening and closing.
Depending on the elevator design, door wheels can differ in diameter, material, bearing construction, mounting arrangement, and track compatibility. Some systems use single-wheel arrangements, while others use multiple rollers to distribute the door load more effectively.
Because the wheel operates every time the elevator is used, its quality has a direct impact on door performance. A suitable wheel should provide smooth rotation, consistent contact with the track, and sufficient durability for the expected operating cycle.
Why Choosing the Correct Door Wheel Matters
A lift door may appear to be a simple moving panel, but its movement depends on several precisely matched components. The wheel is particularly important because it transfers the door load to the track while allowing controlled movement.
Using the wrong component may result in:
- Excessive door noise
- Jerky or uneven opening
- Increased friction
- Door panel misalignment
- Faster track and roller wear
- Frequent adjustment requirements
- Reduced service life of door components
For this reason, purchasing a replacement based only on appearance or price can create additional maintenance costs. A technically compatible component is generally a better choice for long-term performance.
1. Check the Existing Wheel Dimensions
The first step when selecting a replacement is to measure the existing component accurately. Important dimensions may include wheel diameter, wheel width, axle or shaft diameter, bearing dimensions, and overall assembly size.
Even a small dimensional difference can affect how the wheel sits against the track. Before placing an order, compare the measurements with the manufacturer's specifications or the original part information.
If the original wheel is damaged and difficult to measure, the elevator model, door operator model, part number, or photographs of the existing assembly can help a supplier identify a suitable option.
2. Understand Your Elevator Door System
Not every lift uses the same door arrangement. Elevator doors can have different configurations, including center-opening, side-opening, telescopic, and other specialized designs.
The door hanger assembly is designed around the specific movement and weight distribution of the door panels. Therefore, the replacement wheel must be suitable for the particular door mechanism.
A reliable lift door hanging wheel supplier should be able to evaluate technical information rather than recommending a product based only on a photograph. Providing details such as the elevator brand, door type, existing wheel dimensions, and part number can make product identification much more accurate.
3. Consider Wheel Material
Material is another important factor because the wheel remains in continuous contact with the door track.
Common wheel constructions can include metal components, engineered polymers, or combinations of different materials. The appropriate choice depends on the door design, load, operating frequency, track material, and manufacturer's specifications.
A wheel with suitable material properties should provide a balance between strength, wear resistance, smooth operation, and compatibility with the track.
For high-traffic elevators, durability becomes especially important because the doors may complete thousands of operating cycles over their service life.
4. Check Bearing Quality
The bearing allows the wheel to rotate with minimal resistance. A worn, poorly manufactured, or incorrectly sized bearing can create friction and affect the movement of the door.
When evaluating an elevator door roller wheel supplier, ask about the bearing configuration and product specifications rather than focusing only on the outer wheel dimensions.
The bearing should be appropriate for the operating environment and designed to work with the wheel assembly. Smooth rotation by hand is useful as an initial check, but technical compatibility should always be verified before installation.
5. Match the Wheel to the Track
The wheel and track work together as a system. A wheel may have the correct diameter but still perform poorly if its profile does not match the track.
Check the shape and contact surface of the original wheel. Depending on the system, the wheel may have a particular profile intended to maintain stable contact with the track.
If a replacement wheel does not sit correctly, it can increase friction and cause uneven movement. Over time, this may also damage the track itself.
This is why matching the wheel profile, dimensions, and mounting arrangement is essential when selecting a replacement.
6. Consider Door Weight and Operating Frequency
The weight of the elevator door panel influences the load placed on the hanging assembly. A wheel designed for one application may not be suitable for another application with significantly different loading conditions.
Commercial buildings, hospitals, hotels, shopping centers, and residential buildings can have very different elevator usage patterns. A high-traffic lift may require components designed for frequent operation and demanding service conditions.
When ordering a component, provide the supplier with as much information as possible about the elevator application. This allows the product selection to be based on actual operating requirements rather than assumptions.
7. Look for the Correct Replacement Part
When an original wheel becomes damaged or worn, replacing it with the closest-looking product is not always the best solution. Ideally, the replacement should match the original technical specifications.
An elevator door wheel may need replacement because of bearing wear, surface damage, deformation, unusual noise, or poor door movement. However, the underlying cause should also be checked.
For example, if the track is damaged or the door is incorrectly aligned, installing a new wheel alone may not solve the problem. A qualified elevator technician should inspect the complete door assembly when necessary.
Signs That Your Door Hanging Wheel May Need Replacement
Several symptoms can indicate that the door wheel or related components require inspection:
Unusual Noise
Grinding, squeaking, clicking, or repetitive rolling sounds can indicate bearing wear, contamination, incorrect alignment, or track problems.
Jerky Door Movement
A healthy door system should move consistently. Jerky movement may indicate wheel wear, track obstruction, incorrect adjustment, or a damaged bearing.
Door Misalignment
If the door panels no longer meet correctly or appear uneven, the hanger and roller assembly should be inspected.
Increased Door Resistance
A door that requires more effort from the operator or moves unusually slowly may have increased friction in the wheel, track, or related mechanism.
Visible Wear
Cracks, flat spots, deformation, corrosion, or excessive surface wear are clear reasons to have the component inspected and replaced if required.
How to Buy the Right Component from a Supplier
When sourcing elevator spare parts, technical information is more valuable than simply providing the product name. Before contacting a supplier, collect:
- Elevator manufacturer and model
- Door operator details
- Door type and configuration
- Existing wheel dimensions
- Part number, if available
- Wheel and bearing photographs
- Quantity required
- Application or elevator usage level
A professional elevator door hanging wheel supplier can use this information to recommend a compatible component and reduce the possibility of ordering the wrong part.
For maintenance companies and elevator contractors, it can also be useful to maintain records of frequently replaced door components. Keeping part numbers, dimensions, and previous purchase information makes future sourcing faster and more reliable.
Why Quality Matters More Than the Lowest Price
Price is an important purchasing consideration, but elevator door components should not be selected solely on cost. A low-quality wheel may wear faster, produce more noise, or require earlier replacement.
A better purchasing decision considers product quality, dimensional accuracy, bearing performance, material, compatibility, availability, and supplier support.
For businesses managing multiple elevator installations, reliable spare-part availability can also help reduce maintenance delays. Working with an experienced supplier can make it easier to identify components and maintain consistent replacement quality.
Final Checklist Before Ordering
Before purchasing a replacement, verify these points:
✓ Wheel diameter and width
✓ Bearing and axle dimensions
✓ Wheel profile
✓ Door hanger compatibility
✓ Track compatibility
✓ Door panel load requirements
✓ Elevator and door operator model
✓ Original part number, if available
✓ Material and construction
✓ Required quantity
Taking a few minutes to verify these details can prevent incorrect orders and unnecessary installation problems.
Choose the Right Elevator Door Hanging Wheel with Confidence
Choosing the right elevator door hanging wheel is not just about finding a part that looks similar to the old one. Important factors such as dimensions, bearing type, material, wheel profile, door configuration, load, and operating conditions should all be checked before selecting a replacement.
For elevator contractors, maintenance teams, and spare-parts buyers, working with a reliable elevator door hanging wheel supplier can make the sourcing process much easier. Providing the correct technical details helps ensure that the replacement wheel matches the elevator door system and performs as expected.
A suitable door hanging wheel can help provide smoother door movement, reduce unnecessary mechanical stress, and support reliable elevator operation. Before ordering, it is always a good idea to verify the component specifications and consult a qualified elevator technician when installation or adjustments are required.
If you are looking for dependable elevator spare parts and component solutions, you can explore Karsar Spares to learn more about available products and solutions.
FAQs
1. How do I choose the right elevator door hanging wheel?
Choose based on wheel diameter, width, bearing size, material, door weight, track profile, and door system. Always compare specifications with the original component before ordering.
2. What causes an elevator door hanging wheel to wear out?
Frequent operation, excessive door load, poor alignment, damaged tracks, inadequate maintenance, contamination, and bearing wear can accelerate wheel deterioration and cause noisy or uneven door movement.
3. How often should elevator door hanging wheels be replaced?
There is no fixed replacement interval. Inspect them during scheduled maintenance and replace when excessive wear, noise, deformation, bearing damage, or poor door movement is detected.
4. Can I replace an elevator door hanging wheel myself?
Elevator door components should generally be inspected and replaced by qualified technicians. Incorrect installation or adjustment can affect door alignment, safety, and reliable elevator operation.
5. Where can I buy quality elevator door hanging wheels?
Buy from a reliable elevator spare-parts supplier that can provide accurate specifications, compatibility information, quality components, and technical assistance for your specific elevator door system.
